SK SATO 8920-02 Temperature/Humidity Transmitter Model SK-RHC-V (0–100mV)

Temperature Transmitter

SK SATO 8920-02 Temperature/Humidity Transmitter Model SK-RHC-V (0–100mV)

Price

Request a quote

1 Unit Minimum Order

Price is not binding and may change at any time. Get the best price by clicking Request Quotation

Stock: 0
Country of Origin: Japan
Shipped From: Bekasi Utara, Bekasi
Category: Temperature Transmitter
Last Updated: 6 May 2026

Specifications of SK SATO 8920-02 Temperature/Humidity Transmitter Model SK-RHC-V (0–100mV)

Explore a wide selection of Temperature Transmitter.

SK SATO 8920-02 Temperature/Humidity Transmitter Model SK-RHC-V (0–100mV)

Brand : SK SATO
Model : SK-RHC-V (0–100mV)
Catalog : 8920-02

This model is one of the Temperature/Humidity Transmitter SK-RHC series with voltage output (0 to 100mVDC). Choose one of three types of probes sold separately as you like. AC adapter is available with extra cost.

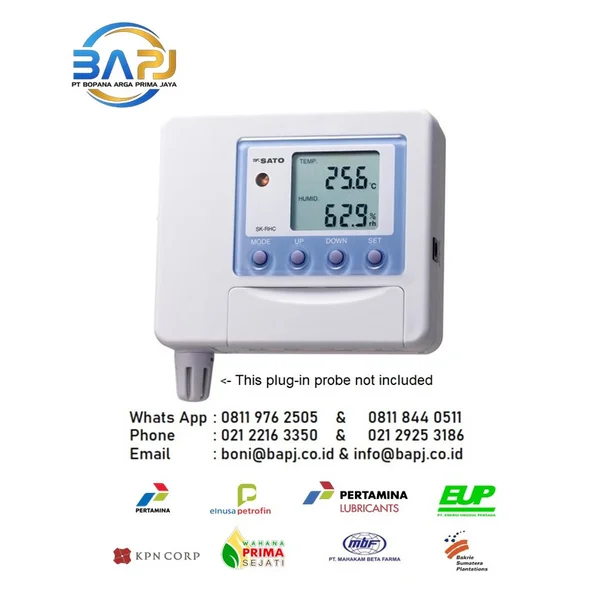

Photo shows a combination of this main body and a plug-in type probe SK-RHCS-1. (Cat. No. 8921-00).

Feature

■ Select either one of the following output signals when you order: voltage, electric current, or RS-485. Four types of external indicators are also selectable.

■ Select the probe such as plug-in type or with-sensor-cord type when you order.

■ Equipped with Hi/Lo alarm

Description

A probe must be purchased separately.

Specifications

Cat. No.		8920-02
Product name		Temperature/Humidity Transmitter
Model name		SK-RHC-V (0–100mV)
Measuring range		Depends on probes. Refer to specifications of probes.
Display range	Temperature	−15 to 65.0°C
	Humidity	5.0 to 99.0%rh
Measuring accuracy		Refer to specifications of probes
Display accuracy	Temperature	± (0.1+1 digit)°C
	Humidity	± (0.1+1 digit)%rh
Output accuracy		±0.3°C / ±0.3%rh
Resolution	Temperature	0.1°C (10°C and up) 1°C (other)
	Humidity	0.1%rh (15%rh and up) 1%rh (other)
Output (with impedance 500 Ω)	Temperature	−10 to 60 mV for −10 to 60°C
	Humidity	0 to 100 mV for 0 to 100%rh
Operation ambient		−10 to 60°C, less than 80%rh without condensing
Refresh time		1 or 10 sec. switchable manually
Alarm		Hi/Lo alarm output as a relay contact Maximum rating for alarm output: survival voltage 48 VAC/DC, ramp load current 1 A * One threshold, either upper or lower limit, can be set for temperature and humidity respectively.
Materials		ABS resin, acrylic glass
Dimensions		118 (W) x 100 (H) x 42 (D) mm
Weight		220 g
Power		12–14 VDC or AC adapter sold separately
Applicable probes		SK-RHCS Series
Standard accessories		Probe fitting screw x1, instruction manual
