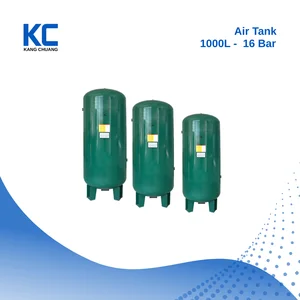

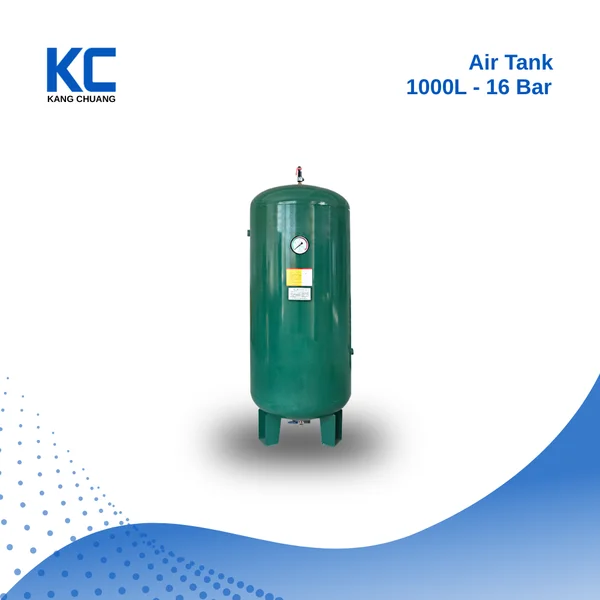

Air Receiver Tank 1000 Liter - 16 Bar

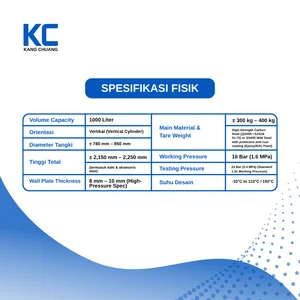

1. Physical Dimensions & Weight

• Volume Capacity: 1,000 Liters (1 $m^3$)

• Orientation: Vertical Type

• Total Height: ± 2,150 mm – 2,250 mm (including support legs)

• Tank Diameter: ± 780 mm – 850 mm

• Wall / Shell Thickness: 8 mm – 10 mm (High-Pressure Spec)

• Tare Weight: ± 300 kg – 400 kg (depending on manufacturer material thickness)

• Material: High-Strength Carbon Steel (Q345R / SA516 Gr.70) or SS400 Mild Steel with protective anti-rust coating (Epoxy/RAL Paint)

2. Pressure & Operational Specifications

• Working Pressure: 16 Bar (1.6 MPa)

• Test Pressure: 24 Bar (2.4 MPa) (Standard 1.5x Working Pressure)

• Design Operating Temperature: -10°C to 110°C / 150°C

• Working Fluid: Compressed Air / Nitrogen

3. Pipe Connections & Standard Accessories

• Inlet & Outlet: Flange DN40 (1.5 Inch) / DN50 (2 Inch) or Thread Connection

• Drain Port: 1/2 Inch Socket (located at the bottom of the tank)

• Standard Included Accessories:

  • Pressure Gauge: High-scale analog pressure dial (0–25 Bar)

  • Safety Valve: Automatically calibrated to release pressure at the 16 Bar limit

  • Drain Valve: Manual or Automatic Drain Valve for releasing condensation water

4. Primary Applications

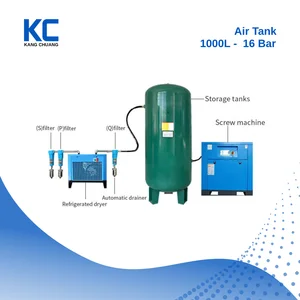

• Compressor System: Ideally paired with high-pressure Screw Air Compressors or Piston Compressors (13–16 Bar) rated from 30 HP to 50 HP.

• Industrial Uses:

  • Metal laser cutting machines (high-pressure air/nitrogen supply)

  • PET blow molding (plastic bottle manufacturing)

  • Pipe pressure testing (Hydrotest / Pneumatic test)

  • Heavy manufacturing industries and large workshops
