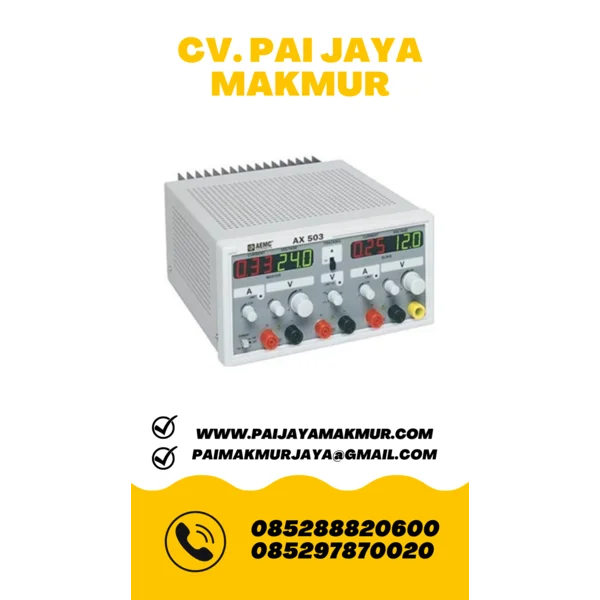

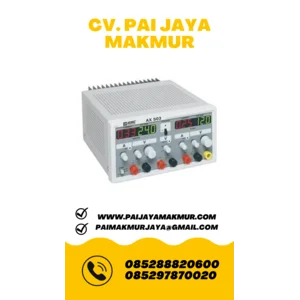

DC Power Supply AEMC AX503

Price

Request a quote

1 Unit Minimum Order

Price is not binding and may change at any time. Get the best price by clicking Request Quotation

Stock: 0
Country of Origin: France
Shipped From: Medan Tuntungan, Medan
Category: Adaptors AC DC
Last Updated: 9 Nov 2024

Specifications of DC Power Supply AEMC AX503

Explore a wide selection of Adaptors AC DC.

Spesifikasi DC Power Supply - AEMC AX503

Cari berbagai macam dari pilihan terlengkap Adaptor AC DC. Cari penawaran terbaik dan termurah Adaptor Ac Dc Aemc untuk aemc di Indotrading.

The Model AX503 offers dual 30V outputs with the ability to display both voltage and current for each output. Additionally, the Model AX503 offers a 5V blind output which is adjustable from 2.7 to 5.5V. Dual 30V outputs can be connected in series to provide double the output voltage up to 60V, or they can be connected in parallel providing double the current output up to 5A. The Model AX503 offers a unique master/slave tracking arrangement whereby the ratio between master and slave can be set up on the fly as needed during the test. Adjusting the master voltage causes the slave to track. Adjusting the slave voltage causes the ratio from master to slave to change accordingly. It offers a Coarse and Fine voltage adjustment as well as current limiting adjustment.

Specs

Electrical

Technology: Linear
Number of Outputs: 3
Voltage: Output 1 0 to 30VDC; Output 2 0 to 30VDC; Output 3 (No display) 2.7 to 5.5VDC
Display Resolution: 100mV
Accuracy: ±0.5% Reading ±1ct
Ripple: ±1mVrms
Line Regulation: ±10% Line Voltage
Load Regulation: 0 to 2.5A ±0.02% Voltage Reading ±5mV; 0 to 5A ±0.2% Voltage Reading ±10mV
Current: Output 1 0 to 2.5A; Output 2 0 to 2.5A; Output 3 (No display) 5A max (no adjustment)
Resolution: 10mA
Basic Accuracy: ±0.5% Reading ±1ct
Limit Indicator: LED, Outputs 1, 2, & 3
Short-circuit Protection: Electronic current limitation with voltage shutdown
Overheating Protection: Thermal protection

Output Coupling

Tracking: Output 1: Master / Output 2: Slave / Proportional Slave tracking (0 to 100% of Master)
Series Mode: 0 to 60VDC / 0 to 2.5A
Parallel Mode: 0 to 30VDC / 0 to 5A

General

Power Source: 115VAC ±10%
Display (LED): Dual Display: VOLTAGE in Green, CURRENT in Red; 0.56" (14.2mm) digit size
Operating Temperature Range: 50° to 104°F (10° to 40°C)
Operating Relative Humidity: <80% RH up to 104°F (40°C)
Storage Temperature Range: -4° to 158°F (-20° to 70°C)
Dimensions: 10.63 x 8.86 x 4.73" (270 x 225 x 120mm)
Weight: 13.2 lbs (6kg)

Safety

Rating: EN 61010-1, 100V Cat. I, CE Mark
Power Supply Inputs: Overvoltage Cat. 300V Cat. II
