Cooling Unit Panel Rittal TopTherm Blue e 3361.500 Wall Mounted 850W 230V R134a

Price
Request a quote
1 Unit Minimum Order

Price is not binding and may change at any time. Get the best price by clicking Request Quotation

Stock
0
Country of Origin
Indonesia
Shipped From
Pinang, Tangerang
Last Updated
16 Oct 2026

Specifications of Cooling Unit Panel Rittal TopTherm Blue e 3361.500 Wall Mounted 850W 230V R134a

Explore a wide selection of Cooling Tower, Heat Exchanger, Parts.

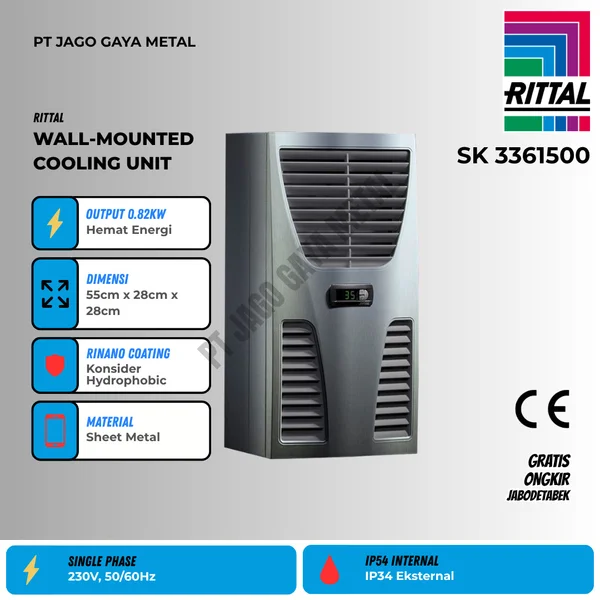

Rittal TopTherm Blue e Wall-Mounted Cooling Unit 3361.500 – 850W Industrial Panel Cooling Solution

Rittal TopTherm Blue e 3361.500 merupakan cooling unit industri premium yang dirancang khusus untuk menjaga suhu optimal pada electrical enclosure, control panel, dan automation cabinet. Dengan teknologi pendinginan efisien dari Rittal, unit ini mampu memberikan performa stabil untuk kebutuhan industri manufaktur, otomasi, kelistrikan, hingga data control system.

Menggunakan sistem wall-mounted dengan desain compact dan efisiensi energi tinggi, cooling unit ini sangat cocok digunakan pada lingkungan industri dengan temperatur tinggi dan operasional non-stop.


Keunggulan Produk

  • Teknologi pendingin industrial Rittal TopTherm Blue e
  • Desain wall-mounted hemat ruang
  • Efisiensi energi tinggi (EER hingga 2.08)
  • Cocok untuk electrical panel & automation cabinet
  • Stabil digunakan pada lingkungan industri bersuhu tinggi
  • Menggunakan refrigerant R134a
  • Build quality industrial grade
  • Mudah instalasi dan maintenance

Spesifikasi Lengkap

SpesifikasiDetail
MerekRittal
SeriesTopTherm Blue e
Model3361.500
Jenis ProdukWall-Mounted Cooling Unit
Cooling Capacity850 W / 0.85 kW
Cooling Output 50/60 Hz L35 L350.85 / 0.89 kW
Cooling Output 50/60 Hz L35 L500.67 / 0.67 kW
Tegangan Operasional230V, 1~, 50/60 Hz
Konsumsi Daya0.4 / 0.43 kW
Rated Current2.7 / 2.7 A
Start-up Current6 / 9.6 A
Energy Efficiency Ratio (EER)2.08 / 2.03
RefrigerantR134a, 280 g
MaterialSheet Steel
WarnaRAL 7035
Dimensi Lebar280 mm
Dimensi Tinggi550 mm
Dimensi Kedalaman280 mm
Berat22 kg
Operating Temperature+10°C hingga +55°C
Setting Range+20°C hingga +55°C
Mounting TypeWall Mounted

Aplikasi Penggunaan

  • Electrical Control Panel
  • Automation Panel
  • PLC Cabinet
  • Industrial Machine Panel
  • Manufacturing System
  • Data & Control System
  • Power Distribution Panel

Kelengkapan & Aksesori Compatible

  • IoT Interface
  • Blue e IoT Adaptor
  • Door-Operated Switch
  • Filter Mat
  • Metal Filter
  • Condensate Hose
  • Electric Condensate Evaporator
  • RiDiag Monitoring System

Informasi Tambahan

Produk original Rittal TopTherm Blue e dengan performa pendinginan optimal untuk kebutuhan industrial enclosure cooling system. Sangat direkomendasikan untuk menjaga kestabilan temperatur panel listrik agar komponen elektronik lebih awet dan performa tetap maksimal.
