Union Steel Pipe Size 35 mm

Union pipe or also called Electrical Metallic Tubing (Thinwall Conduit) is a pipe made from iron plate and produced without welding which is usually marked with red paint. The characteristic of this union pipe is that it is easy to bend and easy to cut, this pipe is also easily available in the market with a relatively cheap price. Union pipes are also generally used for electrical cable installations that are installed in a dry place to avoid corrosion or rust.

In the process of installing the electricity network in a house or building, a union pipe can be used but if it is still within reach of the hand, it must be connected to earth, except when it is used to cover the earth wire (ground).

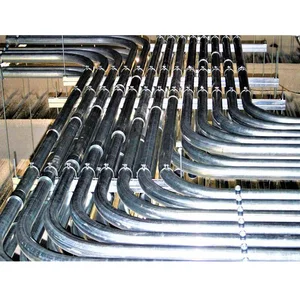

The use of pipes in electrical installations can be installed inside walls / concrete or outside walls / on the surface of wooden boards, so it looks neat. Installation in the wall is very useful in addition to protecting the conductor as well when replacing the conductor in the future it will be easy and efficient.

For the following specifications:

Nominal size : 1.25 Inch (35 mm)
Outside Diameter: 1.510 Inch (38.4 mm)
Inside Diameter : 1.380 Inch (35.1 mm)

For other sizes, see the Electrical Metallic Tubing (Thinwall Conduit) Table.
