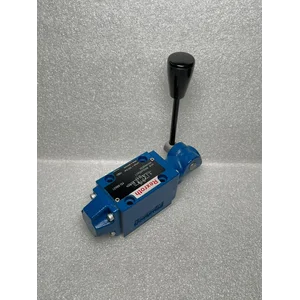

Directional spool valves direct operated with manual actuation REXROTH 4WMM 6 D53/F

Need a valve to manually control the movement of a hydraulic cylinder or actuator? The Rexroth 4WMM 6 D53/F is an excellent choice for hydraulic systems that require manual control of oil flow direction via a lever.
This unit is a manual directional control valve designed to regulate oil flow paths, allowing actuators to move according to the system's requirements. It is operated by a lever, meaning the valve position is adjusted directly by an operator rather than through an electric solenoid.
It is well-suited for component replacement, maintenance, or repairs in industrial hydraulic systems, provided that the specifications and flow patterns match the unit currently in use.
Advantages of the Rexroth Manual Valve
•    Manual operation – oil flow direction is controlled directly via a lever.
•    Actuator motion control – enables the regulation of cylinder or hydraulic motor movement based on the spool configuration.
•    Secure lever positioning – the /F variant features a detent mechanism to maintain the selected position.
•    Compact design – nominal size NG6, suitable for systems with compatible mounting interfaces.
•    Industrial-grade – supports a wide range of hydraulic applications requiring manual flow direction control.
Product Specifications
•    Brand: Bosch Rexroth
•    Model: 4WMM 6 D53/F
•    Type: Manual Directional Spool Valve
•    Nominal size: NG6 / Size 6
•    Component series: 5X
•    Spool type: D
•    Operation: Manual lever
•    Maximum operating pressure: Up to 315 bar
•    Maximum flow capacity: Up to 60 L/min
•    Mounting type: Subplate mounting
•    Mounting pattern: ISO 4401-03-02-0-05
•    Positioning mechanism: Detent (no return spring in the /F variant)
Note: The specifications above refer to the standard variant of the 4WMM6D5X/F series. Ensure that the full code, spool symbol, and mounting configuration are compatible with your hydraulic system.
Don’t Choose the Wrong Valve!
Valves that look similar do not necessarily perform the same function. Differences in spool types and return mechanisms can affect how an actuator operates.
If you are looking for a replacement for an old valve or need to verify product compatibility, please send the part number or a photo of the nameplate to the Vintech Power team.
Contact Vintech Power for product consultations and price quotes. Always confirm that the specifications are correct before installation to avoid any operational delays caused by selecting the wrong component.
