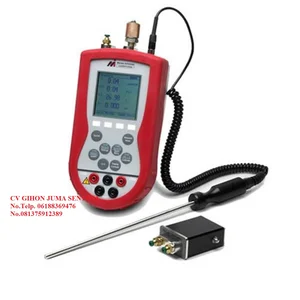

Meriam MFT4000 [Z4000-1] Multifunction Modular Calibrator

Alat Ukur Ketegangan Meriam MFT4000 [Z4000-1] Multifunction Modular Calibrator. The MFT 4000 Digital Calibrator is a base unit for pressure calibration work with selected NIST traceable sensor modules & integral voltage/current meter. The MFT 4010 Digital Calibrator with HART® is a base unit for modules and full device specific HART® communications. Quick Cal displays HART® PV and AO along with MFT’s NIST traceable measurements. User can identify needed trim(s) and access the trim function(s) from same display. Smart Trim allows selection of analog or digital trims without navigating through menu trees. Documenting included. Documenting memory stores up to 200 HART® configuration files and over 100 calibration results (as-found & as-left data [up to 21 points each], time/date info, tag). Communicate with PC via DB-9 connector. Available modules include differential, gauge, vacuum and absolute pressure as well as temperature calibration, and voltage/current calibration. A voltage and current meter is integral to the base unit. All HART® field devices can be configured, polled, and trimmed using HART® communications. Device Specific commands for supported devices are included with the MFT. The Meriam MFT 4000 series modular calibrator models: Multifunction Modular Calibrator Three sensor bays for a variety of pressure, temperature and electrical measurement and simulation Sensor Modules Manage calibrations, store calibration data, store HART configurations and upload to DMS Database software Field Upgradeable via Internet download of HART device profiles (DOFs) and operating firmware ± 0.025% FS traceable to NIST with full temperature compensation from 23°-122° F Standard field re-calibration feature for all sensor module
