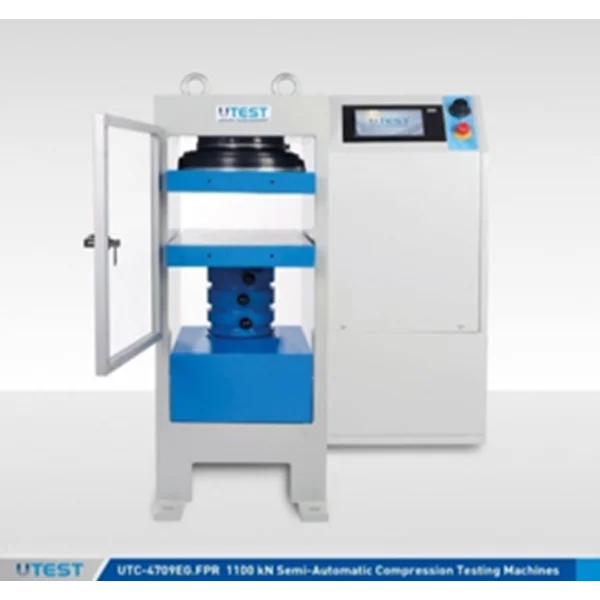

UTC-4709EG.FPR 1100 kN EN 772-1 and General Purpose Automatic Compression Testing Machines for Masonary Units/Blocks Cylinders And Cubes

Civil Engineering Laboratory Equipment Models : 220-240V, 50-60Hz, 1ph. UTC-4709E.FPR and UTC-4719E.FPR Automatic Compression Testing Machines are manufactured for Compression Testing of masonary units/blocks, cylinders and cubes. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. The machines allow inexperienced operators to perform the test. UTC-4680 Pedestals that are made of steel to facilitate the users placement of specimens in the machines for Compression test should be ordered separately. Main Features : > Pace Rate control between 1 kN to 25 kN. > Load Accuracy Class 1 acc. to EN 12390-4 and acc. to E74 starting from with the 5% of the machine capacity (Special calibration option starting from 1% of the full range with UTC-0210). > Tests automatically with closed loop control. > The tests can be performed by controlling the machine either on U-Touch PRO control unit (UTC-4930.FPR) or on a computer with using free UTEST Software (USOFT-4830.FPR) which is provided free of charge with the machines. > Load measurment with a pressure transducer. > Hydraulic pump with dual stage for rapid approach. > Welded steel walled frame with a single acting piston. > Piston return at the end of test automatically. Safety Features : > Maximum pressure valves to avoid machine overloading. > Limit switch for piston stroke. > Emergency stop button. > Removable transparent front and rear safety doors. > Software controlled maximum load value. > The front safety doors have an automatic safety device to stop the machine if the door is opened during a test. Capacity : 1100 kN. Frame Type : Welded Steel. Lower Platens Dimensions (D) : 310x510x50 mm. Upper Platens with Ball Seating Assembly Dimensions (C) : 310x510x50 mm. Surface Hardness of Loading Platens : 55 HRC. Flatness Tolerance : 0,05 mm. Piston Diameter : 230 mm. Piston Stroke : 50 mm. Maximum Vertical Clearance Between Platens (E) : 330 mm. Horizontal Clearance (B) : 320 mm. For Masonary Units/Blocks Specimens Sizes (up to) : up to 300x500 mm masonary units/blocks. For Cylinder Specimens Sizes (up to) : up to Ø160x320 mm cylinders. For Cubes Specimens Sizes (up to) : 200 mm. Power : 550 W. Oil Capacity : 20 L. Maximum Working Pressure : 280 Bar. Dimensions (wxlxh) (AxdxG) : 750x550x750 mm. Weight : 775 kg. Pedestal (Optional) : UTC-4680. The machines are supplied complete with : > 100 mm, 50 mm, 30mm height x Ø205 mm distance pieces. > Scissor Jack for Loading Platens/Bearing Blocks, (UTC-4629). > Removable transparent front and rear safety doors.
