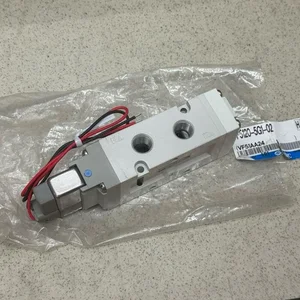

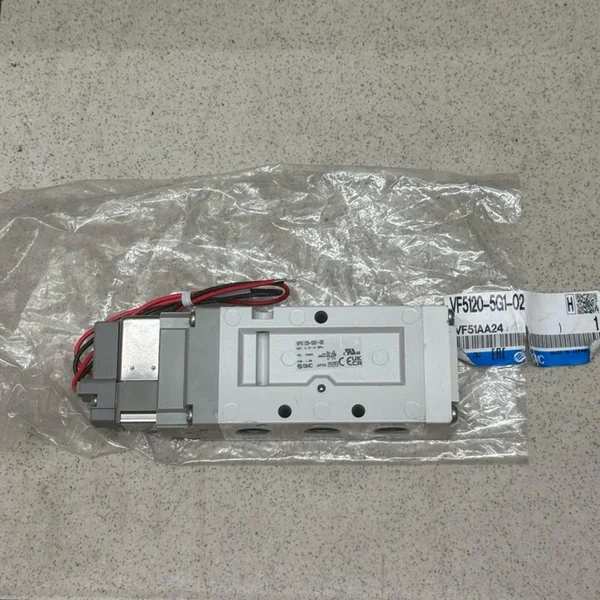

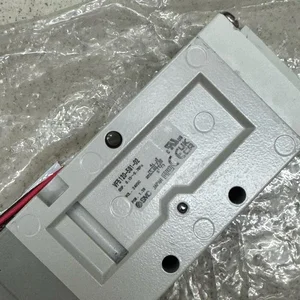

Solenoid Valve type SMC VF5120-5G1-02 DC24V

The SMC VF5120-5G1-02 is a VF5000 series pneumatic solenoid valve featuring a 5-port, single-solenoid (2-position) configuration, designed to control the flow direction of compressed air in industrial pneumatic systems. The VF series offers high flow capacity within a compact body, making it suitable for applications requiring rapid response and limited installation space.

With a 24V DC coil and a grommet lead wire connection, this valve integrates easily with industry-standard PLC control systems. The 1/4" port size (code "02") makes it suitable for mid-range applications, such as actuating pneumatic cylinders in automation, packaging, or conveyor machinery. This valve is also available with a power-saving circuit option that reduces power consumption once the holding state is reached, resulting in greater energy efficiency during long-term operation.

Advantages:

High flow capacity with a compact body

24VDC coil voltage, compatible with standard PLC control systems

Power-saving circuit option available for energy efficiency

Individual exhaust for each control port

Non-locking manual override for easy manual testing

Mountable within VF series manifold systems

Specifications

Parameter Description

Brand SMC

Part Number VF5120-5G1-02

Series VF5000 (5-Port Solenoid Valve)

Type Pilot Poppet Type, 5-Port Solenoid Valve

Function 2-Position Single (2-position, single solenoid)

Piping Body Ported

Exhaust Type Individual

Coil Voltage 24V DC

Lead Wire Grommet (code "G"), length ± 300 mm

Manual Override Non-locking Push Type

Port Size (A, B) 02 (1/4")

Thread Rc / NPTF (depending on order code)

Operating Pressure 0.15 – 0.7 MPa

Power Consumption ± 1.55 W (standard) / ± 0.5 W (with power-saving circuit)

Light/Surge Suppressor None (Without)

Dimensions (L x W x H) ± 241 x 33 x 90 mm

Weight ± 300 – 335 g

Condition New, original
