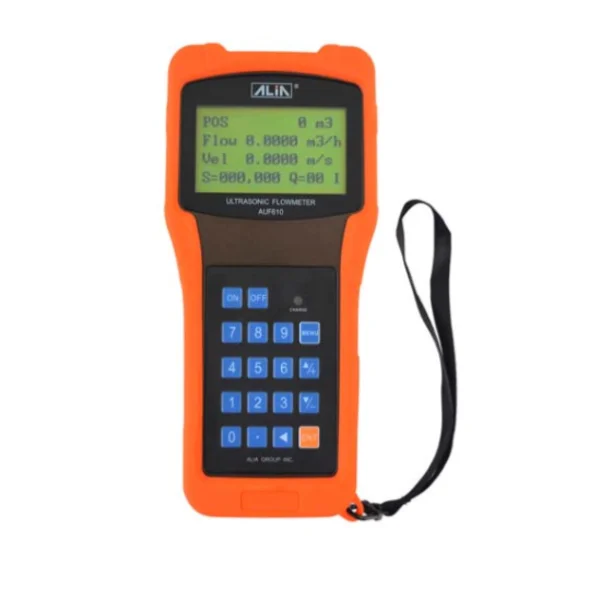

Portable Transit-Time Ultrasonic Flowmeter (Model AUF610 Series)

Portable Transit-Time Ultrasonic Flowmeter (Model AUF610 Series)

Measuring Principle :

Transit time difference

Pipe Size :

S Type : 15 mm ~ 100 mm (1/2" ~ 4")

M Type : 50 mm ~ 1000 mm (2" ~ 40")

L Type : 300 mm ~ 6000 mm (12" ~ 240")

HS Type : 15 mm ~ 100 mm (1/2" ~ 4")

HM Type : 50 mm ~ 1000 mm (2" ~ 40")

Pipe Material :

Cast Iron, Stainless Steel, Ductile Iron Copper, PVC, Aluminum, Asbestos Fiberglass... Etc

Liner Material :

Tar Epoxy, Rubber, Mortar, Polypropylene, Polystyrol, Polystyrene, Polyester, Ebonite, Polyethylene, Teflon... etc

Display :

4 Line LCD with illumination

Flowrate : 5 digit with decimal point

Totalizer : 8 digit, Forward, Reverse & Net values

Engineer Unit : M3, Liter, US Gallon, Imperial Gallon, Million Gallon, Cubic Feet, US Barrels, Imperial Barrels, Oil Barrel

Time Unit : Second, Minute, Hour, Day

Other : Velocity, Date, Time, Signal condition

Accuracy :

+/- 1% ~ +/- 2% value of reading (0.5 ~ 30 m/s)

+/-0.5% value of reading (Online calibration)

Repeatability :

+/-0.2% value of reading

Keypad :

18 Key with tactile action

Response Time :

Less than 1 second

Flow Velocity :

0.01 ~ +/- 32 m/s

Resolution :

0.0001 m/s

Ambient Temperature :

-40 ~ +60  C

Ambient Humidity :

90% RH or Less

Built-in Battery :

Ni-MH Battery

Operation Time :

> 10 Hours

Charger :

90 ~ 260Vac 50/60 Hz, 8-12 Hr charging

Data Storage :

Operation parameters and totalizer figures are stored by EEPROM for more than 10 years

Data Logger :

Limitless overwriting in 64 columns (Flowrate, totalizer, time, date included)

Output :

Pulse (Open collector)

Alarm :

High/Low with buzzer

Power Consumption :

Less than 2W

Dimensions :

206 * 100 * 35 mm

Weight :

0.6 Kg

Protection Class :

Converter : IP65

Sensor : IP68 (Submersible)
