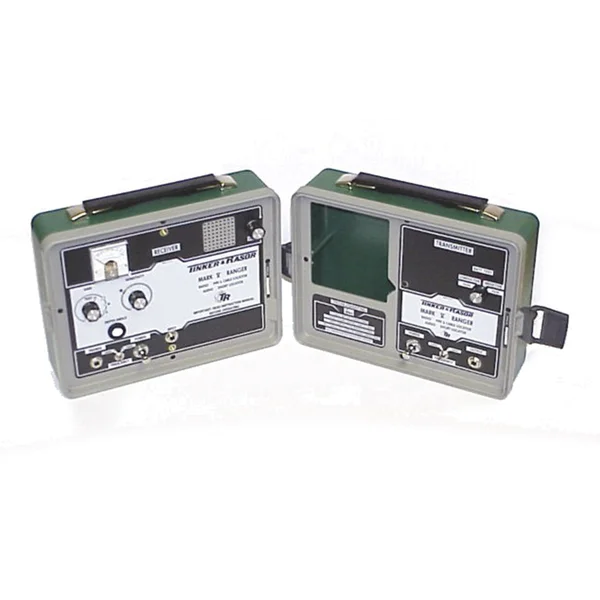

Tinker & Rasor Model: Mk V "Ranger" Duel Frequency Locator

Cable Locator

Tinker & Rasor Model: Mk V "Ranger" Duel Frequency Locator

Price

Request a quote

1 unit Minimum Order

Price is not binding and may change at any time. Get the best price by clicking Request Quotation

Stock: 0
Country of Origin: United States
Shipped From: Bekasi Utara, Bekasi
Category: Cable Locator
Last Updated: 5 Oct 2026

Specifications of Tinker & Rasor Model: Mk V "Ranger" Duel Frequency Locator

Explore a wide selection of Cable Locator.

Tinker & Rasor Model: Mk V "Ranger" Duel Frequency Locator

Works with Detectron Model # TS-8

Features

Radio and audio frequency
Inductive or conductive operation
On handle to find unknown structures
Interrupter feature on transmitter
Very accurate depth location (triangulation)
RF Pipe & Cable locator (Short Locator)
Holiday detection of buried pipe (Pearson Method)
Volume control
Battery operated
Rechargeable Li-Ion battery available (optional)

Mk V/S "Short Locator" comes with:

Mark V "Ranger" Instrument
Adapter, TS/8 to Ranger
Headphones with adapter
Connecting Cables
Ground Plate
Carrying Case
(12) "C" Cell Batteries
Instructions Manual

Mk-V/H Complete comes with everything the MK-V has plus:

Cable Cleats (Set of 4)
Cable Connecting Leads - 20'
Shoe Cleats (2 pairs)
Terminal Board Single Connect PD
Terminal Board Double Connect PD

Environment

0ºC to 50ºC (32ºF to 122ºF)

Dimensions

Transmitter-11.375" x 8.5" weight 3.3 lbs. (289mm x 216mm x 76mm, 1.36kg)
Receiver- 11.375" x 8.5" weight 3.4 lbs. (289mm x 216mm x 76mm, 1.81kg)

Mark V Short Parts List

Accessories Available:

#085-098 Mk V Ranger Instrument
#010-025 "C" Cell Battery - US$2.33 Each MV5 Takes 12 Each
#026-062 Cable, Audio Frequency Ranger
#115-013 Headphones Stereo
#009-021 Adapter, Headphones
#116-028 Ground Plate
#010-038 Li-Ion Rechargeable Battery order with 031-023-VEN Charger
#085-087 Detectron TS/8 Handheld Probe
#009-014 Adapter, TS/8 to MkV Ranger

Mark V Complete Parts List

Accessories Available:

#085-098 Mark V Instrument
#010-025 "C" Cell Battery - US$2.33 Each Mk-V Takes 12 each
#026-008 20' Cable Connecting Lead
#026-006 Cable Cleats Set of 4
#026-062 Cable, Audio Frequency Ranger
#035-002 Cleats (2 pair)
#115-013 Headphones, Stereo
#009-021 Adapter, Headphones
#116-028 Ground Plate
#164-012 Terminal Board Single Connect
#164-024 Terminal Board Double Connect
#010-038 Li-Ion Rechargeable Battery order with 031-023-VEN Charger
#009-014 Adapter TS/8 to MkV Ranger
#TS-8 (Detectron)
