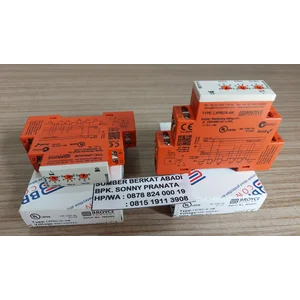

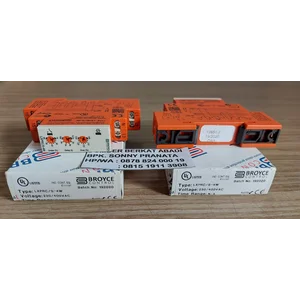

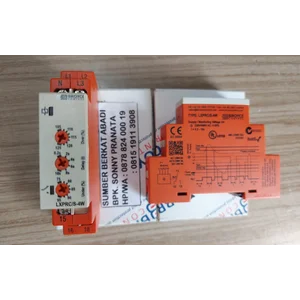

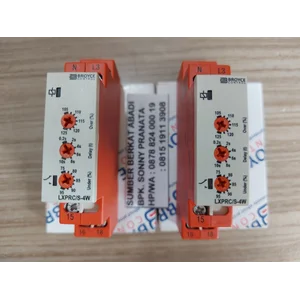

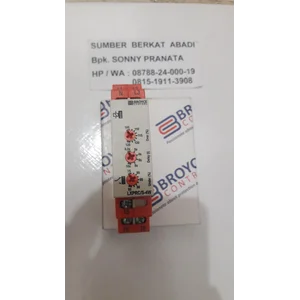

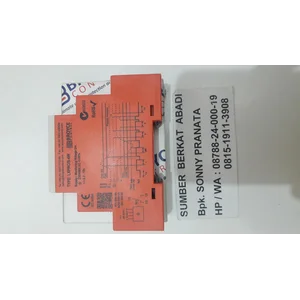

Broyce Control Phase LXPRC/S-4W 230V (400V)

UNDER/OVER VOLTAGE, PHASE LOSS (380VAC)

Brand = BROYCE CONTROL

Type = LXPRC/S-4W (NEW Part Number) : MXPRC/S-4W (OLD Part Number = Discontinue / Obsolete)

Voltage = 230 / 400 VAC

Factory = Made in UK

BROYCE CONTROL - GENUINE PRODUCT 100%

Product Details

LX Series - Three Phase Relays

L Series relay range of timers, control and three phase relays incorporate the latest technology and offer a wide range of user adjustable features.

17.5mm DIN rail housing

Microprocessor based

Measures phase to phase voltages

1 x SPDT relay output 8A

Green LED indication for supply status

Red LED indication for relay status

SPECIFICATIONS

Monitoring Application Phase, Voltage

Supply Voltage 400 V ac

Contact Configuration SPDT

Voltage Sensitivity Overvoltage, Undervoltage

Voltage Sensing Range 300  380 (Under) V, 420  500 (Over) V

Phase Sensitivity Phase Failure, Phase Sequence

Time Delay 0.2  10 s

Length 66.5mm

Special Features Time Delay

Series L-Series

Current Range Maximum of 8 A

Mounting Type DIN Rail

Operating Temperature Range -20  +60 C

Maximum Operating Temperature +60C

Height 89mm

Dimensions 17.5 x 89 x 66.5 mm

Width 17.5mm

Terminal Type Screw

Minimum Operating Temperature -20C

Standards Met IEC 60664
