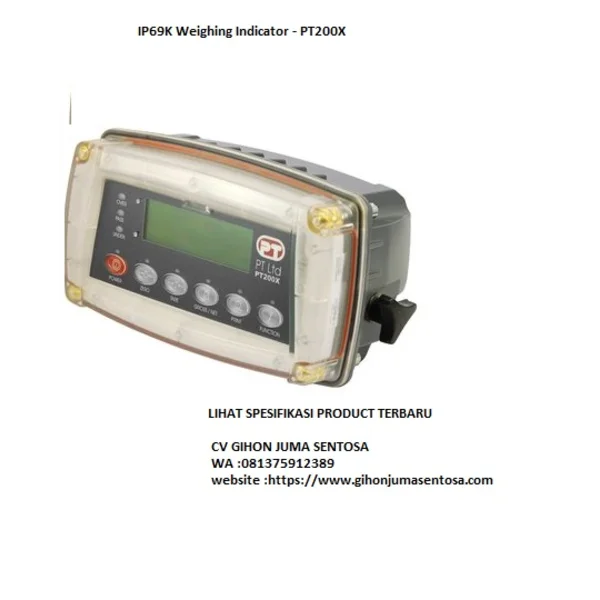

IP69K Weighing Indicator Type PT200X

The PT200X is all about industrial protection in harsh environments, based on the PT200 display series which has been widely used in weight displays for many years, the PT200X provides unparalleled protection. Rated IP69k the highest environmental protection rating and constructed of an impact resistant plastic which will withstand high pressure water jets (1450psi) at high temperature (up to 80c) from multiple angles. Using double O rings to seal the clam shell design the PT200X incorporates a continuous single front panel which protects the display and avoids leaks. Capacitive keyboard (no moving parts) means no membrane to fail, waterproof glands and connectors seal the cable entry. And when you need to test or calibrate you don’t even need to enter the housing, all you do is use the capacitive keyboard or place the optional magnetic PT OPTO-LINK onto the external display surface allowing for PC connection to upload or download configuration files. Three models are offered, Standard power input of 12 to 24VCD, 9.6, 12 and 24V batteries (2.5 VA max)- ON/OFF key with memory feature. AC Power supply: 110/240VAC 50/60Hz 12V Battery pack (rechargeable NiMH) The exceptional environmental protection designed into the PT200X is ideal for food processing, Automotive, Chemical, Pharmaceuticals and similar maximum protection industries where high pressure cleaning is required but due to the nature of the capacitive buttons it is worth considering the PT610 and PT620 where splashes or rain on the panel frequently occur.
