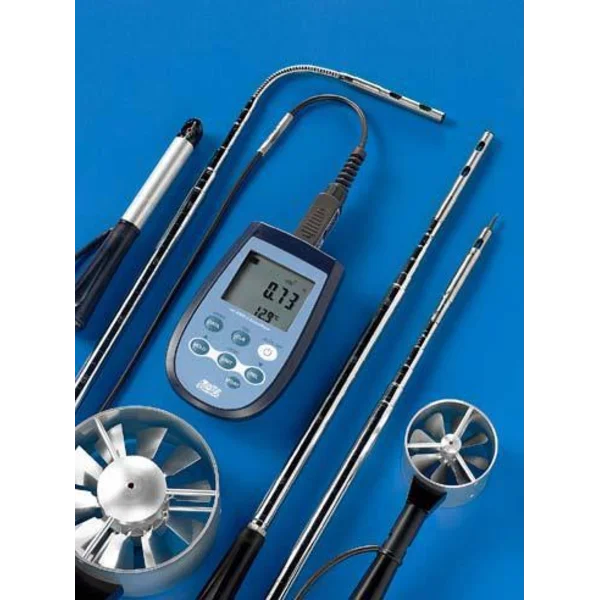

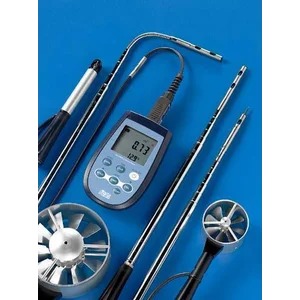

HD 2303.0 THERMO-ANEMOMETER

The HD 2303.0 is a portable instrument with a large LCD display. It is designed for use in the fields of air-conditioning, heating, and and environmental comfort. It uses hotwire or vane probes to measure air speed, flow rate, and temperature inside pipelines and vents. Temperature only is measured by water immersion, penetration or contact probes. The probes are equipped with the SICRAM module, with the factory calibration data stored inside. The Max, Min and Avg function calculate the maximum, minimum or average values. Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off that can also be yurtdışı. Technical Specification Instrument Dimensions (Length x Width x Height) 140x88x38mm Weight-160 g (complete with batteries) Materials-ABS Display-2 x 4 ½ digits plus symbols Visible area-52x42mm Operating conditions Operating temperature--5 ... 50 ° C Storage temperature--25 ... 65 ° C Working relative humidiTy-0 ... 90% RH without condensation Protection degree IP67 Power supply 3 batteries 1.5 V type AA batteries Power occurs.absorbed with instrument off-< 20μA Measuring unit – ° C-° F-m/s – km/h – ft/min – mph-knots-l/s m3/min-m3/h-ft3/s-ft3/min Connections -Input module for the probes DIN45326 8-pole male connector Measurement of temperature by Instrument -Pt100 measurement range-200 ... + 650 ° C -Pt1000 measurement range-200 ... + 650 ° C -Resolution 0.1 ° C
