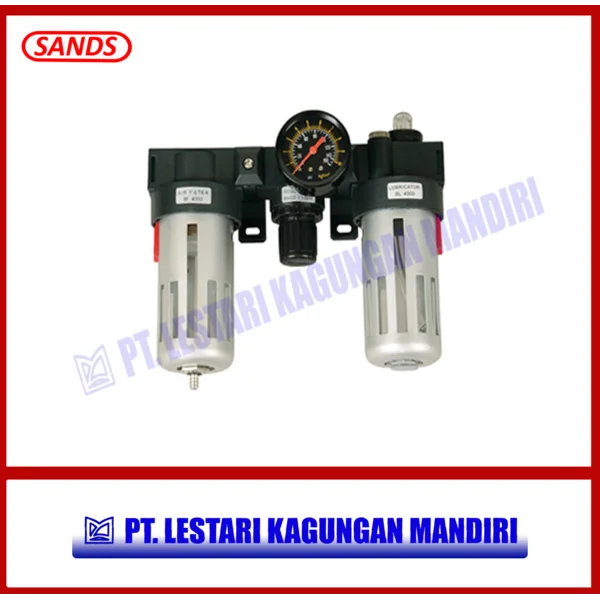

Air Filter Regulator & Lubricator Size 3/8 inch

* Functions: Air filtering, Water

Regulating, & Air Lubricating

* Supply pressure: max. 15 Kgf/cbm

*Operating pressure: 10 Kgf/cbm

* Regulating range: max. 0.5 - 8.5 Kgf/cbm

* Flow rate: 200-1200 NI/min

* Oil mist removal rate: more than 99.9%

Brand: SANDS

Air Filter Regulator Lubricator (FRL) are three components that are often used in pneumatic systems to regulate, clean, regulate pressure, and lubricate airflow used in various industrial applications. Let's see what each component means:

Air Filter (Air Filter):

The air filter functions to clean the air that will be used in the pneumatic system from particles of dirt, dust and other contaminants. These particles can damage or interfere with the performance of pneumatic components such as valves and air cylinders. Air filters use filter elements (filters) which are usually made of synthetic fiber or fine metal to trap contaminants and maintain the quality of the air entering the system.

Air Regulator (Air Regulator):

The air regulator functions to regulate the air pressure entering the pneumatic system. This is important because some pneumatic equipment has working pressure limits that must be maintained so that their performance remains stable and controlled. The air regulator allows you to adjust the output pressure according to your application requirements. This helps keep the pressure at the desired level even if the source pressure varies.

Lubricator (Lubricant):

Lubricators are used to provide lubrication to air streams used in pneumatic systems. This lubrication is important for maintaining and extending the life of moving pneumatic components, such as air cylinders. Without proper lubrication, friction between components can cause excessive wear and interruption in system operation. The lubricator injects a small amount of lubricant into the air stream, spreading it evenly and helping to protect components from wear.

In general, the combination of these three components in one FRL (Filter Regulator Lubricator) unit helps ensure that the air used in pneumatic systems is clean, pressure controlled, and effectively lubricated to maintain the performance and longevity of the system components.
