Specifications of EPDM Solid Rubber Sheet (Solid EPDM Rubber Roll / Industrial EPDM Sheet)

Explore a wide selection of EPDM Rubber.

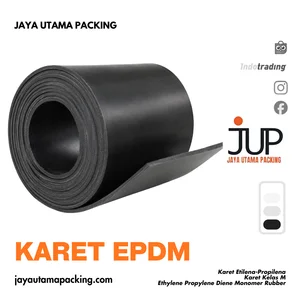

EPDM Solid Rubber Sheet (Solid EPDM Rubber Roll / Industrial EPDM Sheet) High Ozone, UV, Weather & Steam Resistance

EPDM Solid Rubber Sheet (Solid EPDM Rubber Sheet / Roll) supplied by CV Jaya Utama Packing is a high-performance synthetic elastomer sheet formulated from Ethylene Propylene Diene Monomer polymer. Engineered to meet demanding requirements for gasket fabricators, industrial manufacturing plants, civil contractors, and facility maintenance teams, this solid rubber material delivers resistance to ozone attack, ultraviolet radiation, outdoor weathering, hot steam, as well as acidic and alkaline chemical solutions. Explore complete product options in our rubber product catalog for custom gasket cutting, pipe sealing, and fluid containment applications.

Weather & UV Degradation Resistance: Resists ozone cracking and long-term direct sunlight exposure without hardening or surface degradation.
Thermal Steam & Temperature Stability: Operates across temperature ranges from -40°C to +130°C, suitable for hot water piping and HVAC lines.
Acid & Alkali Chemical Resistance: Resists chemical corrosion from diluted acids, alkaline washing fluids, and industrial wastewater.
Low Compression Set & Mechanical Elasticity: Maintains sealing tension over extended periods without losing elasticity.
Corporate & B2B Order Compliance: We fulfill wholesale supply contracts and industrial project orders with official Tax Invoice (Faktur Pajak PPN) issuance and protective shipping options nationwide. Review our credentials on our company profile page.

Technical Specifications & Performance Parameters of EPDM Solid Rubber Sheet

The technical parameter matrix below assists mechanical engineers, gasket fabricators, MEP contractors, and plant maintenance teams evaluating EPDM Solid Rubber Sheet performance:

Parameter Category	Technical Specification Attribute	Standard Value / Material Performance Indicator
Material Identification & Standards	Core Polymer Name	Ethylene Propylene Diene Monomer (EPDM)
	Supply Format	Sheet & Roll Options
	Material Construction	Solid Non-Porous Dense Rubber Sheet
	Compliance Standards	ASTM D2000 / ISO 37 / ISO 815 / ROHS Compliant
Physical & Dimensional Characteristics	Standard Thickness Range	1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm
	Standard Width Options	1000 mm, 1200 mm, 1400 mm, 1500 mm
	Roll Length Options	5 Meters & 10 Meters per Roll (Or Custom Cut Sheets)
	Material Density	1.30 - 1.50 g/cm³
Mechanical Properties	Hardness Rating	65 ± 5 Shore A (Options from 50 to 80 Shore A)
	Tensile Strength	5 MPa to 12 MPa (Varies by Technical Grade)
	Elongation at Break	250% - 400%
	Compression Set	25% - 35% (Tested 22 Hours at 70°C)
Thermal & Environmental Ratings	Continuous Operating Temperature Range	-40°C to +130°C (Intermittent Peak +150°C)
	Ozone & UV Resistance	Extreme Rating (No Cracking under ASTM D1149 Testing)
	Color Options	Standard Black / Custom Color Grades

Key Operational Advantages of Solid EPDM Rubber for Industry & Construction

Applying EPDM Solid Rubber Sheet components delivers maintenance savings, reliable fluid sealing, and long-term outdoor service life:

Watertight & Gas-Tight Sealing Performance: Dense non-porous structure blocks liquid leaks, steam, and pressurized fluid ingress. Read technical details in our rubber articles section.
Custom Gasket Cutting & Fabrication Ease: Easy to cut using punch dies, CNC gasket cutting tables, or manual tools matching flange patterns.
Hot Water & Saturated Steam Resistance: Preserves material elasticity when exposed to hot water and industrial steam lines.
Electrical Insulation & Vibration Damping: Provides low-voltage electrical insulation while dampening mechanical equipment vibration.

Target Applications for EPDM Solid Rubber Sheet Across Core Industrial Sectors

CV Jaya Utama Packing supplies wholesale and custom-cut solid EPDM rubber sheets across 5 core industrial sectors:

Automotive & Transportation Industry: Applied as weather stripping, door seals, radiator hoses, engine gaskets, suspension bushings, and vibration dampers for OEM assembly plants and Tier-1 / Tier-2 automotive suppliers. View choices in our rubber product catalog.
HVAC & Plumbing Industry: Used as thermal break gaskets, flexible expansion joint seals, commercial AC compressor gaskets, and duct isolation pads for MEP contractors and building maintenance teams.
Construction & Civil Infrastructure: Applied as window glazing gaskets, roofing membrane seals, bridge expansion joint pads, structural rubber bearings, and ACP facade seals for civil contractors and facade applicators.
Renewable Energy & Solar Panel Industry: Installed as T-profile solar panel gaskets for weatherproofing gaps between solar PV panels in outdoor solar farm installations.
Chemical, Petrochemical & Water Treatment: Applied as pipe flange gaskets, valve diaphragms, pump seals, and acid-alkali resistant O-rings in fertilizer plants, oil & gas facilities, wastewater treatment plants, and water utility networks.

Chemical Resistance & Fluid Compatibility Chart for EPDM Rubber

Refer to this chemical resistance rating matrix for EPDM Solid Rubber Sheet across various industrial liquid and gas media:

Industrial Media / Fluid Type	Resistance Rating	Application Recommendation Notes
Fresh Water & Salt Water / Seawater	Excellent	Highly recommended for piping and marine fluid systems.
Hot Steam & Hot Water Lines	Excellent	Resists surface erosion up to temperatures of +130°C.
Diluted & Concentrated Acids (Except Nitric Acid)	Good	Suitable for chemical drain and effluent piping lines.
Alkaline Solutions & Caustics (Sodium Hydroxide)	Excellent	Suitable for industrial cleaning and chemical processing plants.
Alcohols & Glycols (Ethylene Glycol)	Excellent	Ideal for radiator cooling loops and anti-freeze solutions.
Petroleum Oils, Engine Oils & Fuels (Hydrocarbons)	Poor / Not Recommended	Not recommended. Select NBR rubber for oil service media.

Performance Comparison Matrix: Solid EPDM Rubber vs NBR Rubber vs Neoprene (CR) Rubber vs Silicone Rubber

Review this comparison matrix to select the optimal rubber sheet material for your engineering requirements:

Performance Evaluation Criteria	EPDM Rubber (Jaya Utama)	NBR (Nitrile) Rubber	Neoprene (CR) Rubber	Silicone Rubber
Ozone, UV & Weather Resistance	Extreme (Highest Rating)	Low	Moderate to High	Very High
Oil & Fuel Resistance	Poor (Not Recommended)	Very High (Highest Rating)	Moderate	Moderate
Acid, Alkali & Water Resistance	Very High	Moderate	High	Moderate
Operating Temperature Range	-40°C to +130°C	-30°C to +100°C	-35°C to +110°C	-60°C to +230°C
Hot Steam Resistance	Very High	Low	Moderate	High

Precision Cutting & Custom Fabrication Services (Custom Gasket Fabrication)

CV Jaya Utama Packing provides precision cutting services for EPDM Solid Rubber Sheet according to project CAD drawings:

Standard Flange Gasket Cutting (ANSI, JIS, DIN, PN): Precision ring and full-face gasket cutting matching international pipe flange standards.
Custom Profile & Shape Cutting (Die-Cut & CNC Router): Custom shape cutting per engineering drawings for machinery seals and equipment housings.
Adhesive Backing Service: Application of pressure-sensitive double-sided adhesive backing on rubber sheets to simplify field installation. Contact our technical team via our company contact page.

Field Installation & Maintenance Guidelines for EPDM Rubber Gaskets

To ensure optimal sealing performance of EPDM Solid Rubber Sheet on pipe flanges or equipment faces, follow these technical installation guidelines:

Mating Surface Preparation: Ensure pipe flanges are free of scale, grease, and old gasket residue before placing the EPDM rubber.
Thickness Selection & Bolt Torque: Select rubber sheet thickness matching flange parallelism tolerances. Tighten bolts in a cross-pattern sequence to distribute sealing pressure evenly.
Routine Inspection Schedule: Perform visual inspections on sealing joints exposed to hot fluids or chemicals to prevent joint leakage from bolt tension relaxation.

Standard Stock Sizes, Formats & Options

We supply various rubber thicknesses and roll dimensions to suit your project scale:

Supply Format	Thickness Options	Standard Dimensions (Width x Length)
EPDM Rubber Roll	1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm	1200 mm x 10000 mm (1.2m x 10m) \| 1000 mm x 10000 mm
EPDM Rubber Sheet (Heavy Plate)	8 mm, 10 mm, 12 mm, 15 mm, 20 mm	1200 mm x 2000 mm \| 1000 mm x 2000 mm
Custom Cut EPDM Part / Strip	Per Technical Specifications	Custom Cut Strip / Gasket per CAD Drawings

Frequently Asked Questions (FAQ) Regarding Solid EPDM Rubber Sheet

Is solid EPDM rubber suitable for motor oil or fuel contact applications?	No. EPDM rubber is not resistant to petroleum oils, hydrocarbon solvents, engine oil, or fuel. For oil and fuel contact, select NBR (Nitrile) Rubber from our rubber product catalog.
Why is EPDM rubber preferred for outdoor seals and roofing applications?	EPDM rubber features saturated polymer backbones that resist degradation from ozone, UV light, and weather extremes without cracking over decades outdoors. Read technical guidance in our rubber articles section.
How is the product packaged to ensure safe transport?	Each rubber roll or sheet is wrapped in protective sack material, sealed in heavy plastic, and palletized on timber frames for safe freight delivery. Select matching products in our product catalog.

About CV Jaya Utama Packing

CV Jaya Utama Packing is an official distributor and supplier of industrial sealing and engineering plastics in Indonesia. We are dedicated to supplying high-grade technical rubber products, EPDM Solid Rubber Sheets, technical packings, and custom machined parts for manufacturing, construction, HVAC, and energy industries. Explore our home page for new material arrivals, or check full specifications in our rubber product catalog. Learn about our corporate credentials on the company profile page, and contact our sales engineering team directly via the company contact page for technical consultations or project quotation requests.

Technical Consultation & Request for Quotation (RFQ)

Obtain official price quotations for high-quality solid EPDM rubber sheets at competitive wholesale rates. Contact the Sales Engineering team at CV Jaya Utama Packing today through our company contact page to receive official RFQs, Technical Data Sheets (TDS), or EPDM Solid Rubber Sheet samples.
