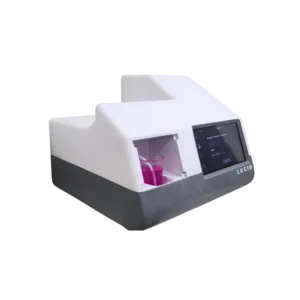

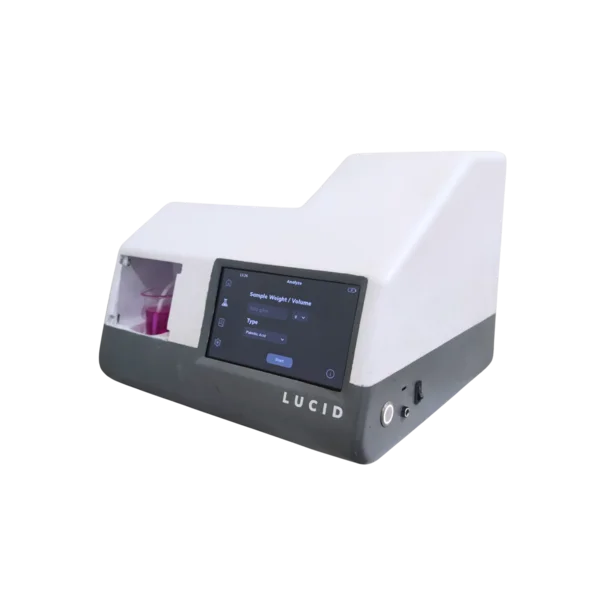

Lucid FFA Portable Auto Titrator Oil Analyzer

Lucid FFA Analyzer is an automatic Free Fatty Acid (FFA) analyzer designed to minimize operator dependency while improving repeatability, consistency, and testing efficiency. By automating the titration process based on the AOCS Official Method Ca 5a-40, Lucid FFA reduces human error, standardizes analytical procedures, and delivers reliable results for routine quality control in edible oil laboratories and production facilities.

Technical Specifications

- Primary Application: Free Fatty Acid (FFA) Analysis

- Reference Method: AOCS Official Method Ca 5a-40

- Detection Method: Automatic Colorimetric Endpoint Detection (Optical Sensor)

- Supported Fatty Acid Profiles: Palmitic Acid (CPO), Oleic Acid (Olive Oil), Lauric Acid (Coconut Oil/PKO)

- Display: 7-inch Capacitive Touchscreen

- Languages: English & Indonesian

- Battery: 9,400 mAh Rechargeable Lithium-Ion

- Data Connectivity: USB Type-C for Direct Data Export to PC

- Dimensions: 32.3 × 35.5 × 25.2 cm

- Weight: Approx. 3.5 kg

- Country of Origin: Made in Indonesia

Key Features

- High-Precision Dosing System

- Automatic Titrant Standardization

- Self-Pump Calibration

- Fully Automatic Analysis

- Plug-and-Play Operation

- Integrated Magnetic Stirrer

- Built-in Reagent Bottle Compartment

- Compact and Portable Design

- 24/7 Hybrid Engineer Support (Remote & On-site)

Application

- Crude Palm Oil (CPO)

- Palm Kernel Oil (PKO)

- Edible Oil Refineries

- Food & Beverage Industry

- Quality Control Laboratories

- Universities & Research Institutes
