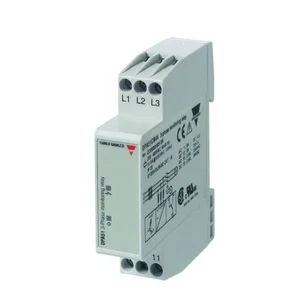

Carlo Gavazzi DPA51CM44 – Phase Sequence & Phase Loss Monitoring Relay

Carlo Gavazzi DPA51CM44 – Phase Sequence & Phase Loss Monitoring Relay

The Carlo Gavazzi DPA51CM44 is a monitoring relay for three-phase systems, engineered to detect incorrect phase sequence and phase loss. It operates using its own 3-phase supply, with detection tolerance for regenerated voltages up to 85% of nominal. This compact DIN-rail unit provides reliable protection and clear LED indication for power and alarm status.

Key Specifications:

• Function: Phase sequence & phase loss monitoring

• Supply voltage: 208–480 VAC (±15%)

• Output: 1× SPDT relay, switching up to 5 A

• Power consumption: 13 VA

• LED Indicators: Power ON (green) & Relay ALARM (yellow)

• Housing width: 17.5 mm (DIN 43880 compliant)

• Operating temperature: –20 °C to +60 °C

• Enclosure material: PA66 / PPE-PS

• Voltage detection threshold: Detects regenerated voltage down to 85%

• Response time: <100 ms (ON), <300 ms (OFF)

• Protection rating: IP20
