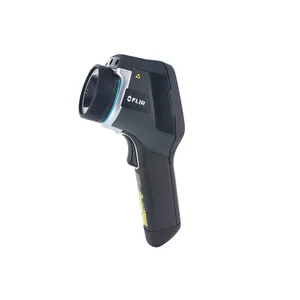

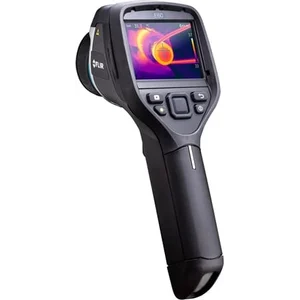

FLIR E60 Infrared Compact Thermal Camera

FLIR E60 Infrared Compact Thermal Camera

• High Resolution 320 x 240 - 78,600 pixels of temperature measurement
• FLIR MSX thermal fusion technology
• Wi-Fi connectivity and video streaming to mobile devices via FLIR Tools Mobile App
• High temperature range up to 650°C/1,202°
• Wi-Fi connectivity to transfer images to your PC
• MeterLink connects to clamp and moisture meters via Bluetooth
• 4× continuous digital zoom
• Integrated 3.1 megapixel digital camera
• Thermal sensitivity of 0.05°C (50mK)
• Accurate to ±2% of reading
• 60Hz sample rate
• 3 moveable spots, 3 box areas, and Delta T
• 3.5” touch screen LCD with Auto Orientation
• Scalable Picture-in-Picture
• Uncooled Microbolometer detector

FLIR E60 Specifications

• High-temperature range up to 650°C/1,202°F
• Thermal sensitivity of 50 mK (0.05°C)
• 60 Hz sample rate
• Bluetooth-enabled meter connectivity via FLIR MeterLink
• Accurate to ±2% of reading
• 3 moveable spots, 3 box areas, and Delta T
• 4x continuous digital zoom
• Scalable picture-in-picture mode
• 3.5” LCD touch screen w/ Auto Orientation

Manufacturer Specs

FEATURES	FLIR E40	FLIR E50	FLIR E60
Temperature range	-4 to 1202°F (-20 to 650°C)	-4 to 1202°F (-20 to 650°C)	-4 to 1202°F (-20 to 650°C)
Thermal sensitivity (N.E.T.D)	<0.07°C at 30°C	<0.05°C at 30°C	<0.05°C at 30°C
Detector Type - Focal plane array; (FPA) uncooled microbolometer	160 x 120 pixels	240 x 180 pixels	320 x 240 pixels
MSX ® Thermal Image Enhancement	Yes	Yes	Yes
Picture-in-Picture (P-i-P)	Fixed P-i-P	Scalable P-i-P	Scalable P-i-P
MPEG 4 Video Recording	Yes	Yes	Yes
Video Camera w/Lamp & Laser	3.1MP/LED Lamp/Laser pointer	3.1MP/LED Lamp/Laser pointer	3.1MP/LED Lamp/Laser pointer
Digital Zoom	2X Continuous	4X Continuous	4X Continuous
Image annotation	Voice (60s)/Text Comments	Voice (60s)/Text Comments	Voice (60s)/Text Comments
Moveable Spot	3 Spotmeters	3 Spotmeters	3 Spotmeters
Area Box	3 Area Boxes (full image with min/max/avg)	3 Area Boxes (full image with min/max/avg)	3 Area Boxes (full image with min/max/avg)
Delta T	Yes	Yes	Yes
Data Communication Interface	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi	USB-mini, USB-A, Composite Video, Bluetooth, Wi-Fi
COMMON FEATURES
Frame Rate	60Hz
Field of view / Focus	25° x 19° / Manual (Minimum focus distance 1.3ft/0.4m)
Spectral range	7.5 to 13µm
Display	Built-in 3.5" color LCD
Image modes	Thermal, visual, MSX, and image gallery
Image Storage	>1000 radiometric JPEG images (SD card memory)
Laser Classification/Type	Mode selector, color palettes, configure image info, units, language, date and time formats, and image gallery
Measurement modes	Auto hot/cold spot, Isotherm (above/below/interval)
Measurement Correction	Reflected ambient temperature & emissivity correction
Battery Type/Operating Time	Li-lon/ >4 hours, Display shows battery status
Charging system	In camera AC adapter/2 bay charging system
Shock/Vibration/Drop / Encapsulation; Safety	25G, IEC 60068-2-29/ 2G, IEC 60068-2-6/ Drop-proof 2m (6.6ft) IP54; EN/UL/CSA/PSE 60950-1
Dimensions/Weight	9.7x3.8x7.2" (246x97x184mm)/<1.82lbs (825g), including battery
