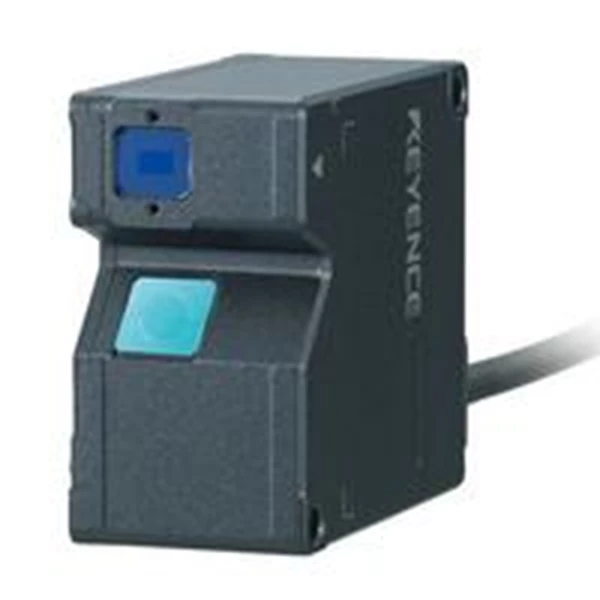

Product Specification Sensor Head Wide Type LK H025
Sale Sensor Head Wide Type LK H025
±3 mm ±0.12"*1
Red semiconductor laser
Laser class (JIS C6802)
Spot diameter (at standard distance)
25 µm x 1,400 µm
±0.02%of F.S. (F.S.= 6 mm 0.24")*2
0.02 µm (0.01 µm)*3
2.55/5/10/20/50/100/200/500/1000 µs (9 steps selectable)
0.01% of F.S./°C (F.S.= 6 mm 0.24")
Incandescent lamp or fluorescent lamp: 10,000 lux max.
0 to +50 °C 32 to 122 °F
35 to 85 % RH (No condensation)
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Approx. 230 g
*1 Measurement range when the sampling cycle is 20 µs or more.
*2 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured in the normal measurement mode.
*3 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured at the reference distance with the number of averaging measurements set to 16384. The value in parentheses is a typical e x ample of a measurement with the number of averaging measurements set to 65536 and the sampling cycle to 200 µs.
