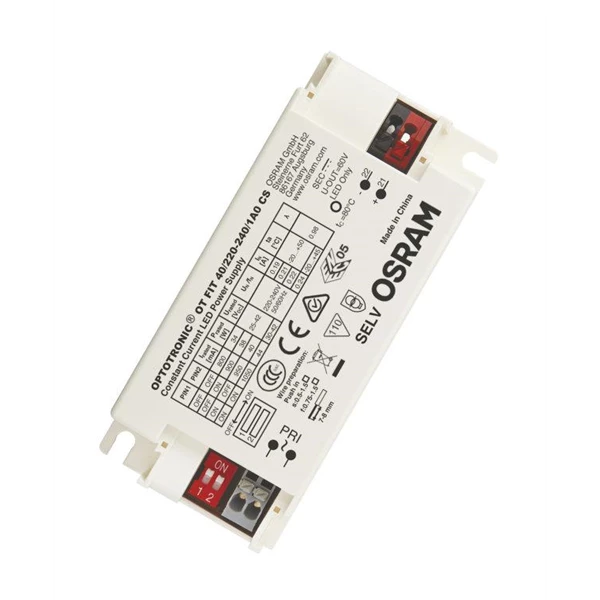

LED Driver Osram OT FIT 40/220-240/1A0 CS VS20 G2 Non Dimmable

Rp194.000
  • Minimum Order 1 unit
  • CategoriesLED Driver
  • Last Updated17 Sep 2018
  • Brand Osram

Product Specification LED Driver Osram OT FIT 40/220-240/1A0 CS VS20 G2 Non Dimmable

Electrical data

Nominal input voltage220…240 V
Mains frequency50…60 Hz
Input voltage AC198…264 V
Total harmonic distortion< 10 %
Power factor λ0.98
ECG efficiency90 %
Device power loss4.9 W
Protective conductor current<0.7 mA
Inrush current< 16 A
Max. ECG no. on circuit breaker 10 A (B)16
Max. ECG no. on circuit breaker 16 A (B)25
Max. ECG no. on circuit breaker 25 A (B)-
Surge capability (L/N-Ground)2 kV
Surge capability (L-N)1 kV
Nominal output voltage25…42 V
U-OUT (working voltage)60 V
Nominal output current800 / 900 / 1050 / 950 mA
Output current tolerance±7.5 %
Output ripple current (100 Hz)< 5 %
Nominal output power20…44 W
Galvanic isolationSELV

Dimensions & weight

Length97.0 mm
Width43.0 mm
Height29.5 mm
Mounting hole spacing, length88.0 mm
Mounting hole spacing, width34.0 mm
Product weight110.00 g
Cable cross-section, input side0.5…1.5 mm²
Cable cross-section, output side0.5…1.5 mm²
Wire preparation length, input side7…8 mm
Wire preparation length, output side7…8 mm

Colors & materials

Casing materialPlastic

Temperatures & operating conditions

Ambient temperature range-20…+50 °C
Maximum temperature at tc test point75 °C
Max.housing temperature in case of fault110 °C
Permitted rel. humidity during operation5…85 %

Lifespan

ECG lifetime50000 / 30000 h

Additional product data

EncapsulatedNo

Capabilities

DimmableNo
Overheating protectionAutomatic reversible
Overload protectionAutomatic reversible
Short-circuit protectionAutomatic reversible
No-load proofYes
Max. cable length to lamp/LED module2.0 m
Suitable for fixtures with prot. classII
Type of connection, output sidePush terminal

Certificates & standards

Approval marks – approvalCCC / CE / RCM / ENEC 05
StandardsAcc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protectionIP20

Logistical data

Temperature range at storage-20…80 °C

Price LED Driver Osram OT FIT 40/220-240/1A0 CS VS20 G2 Non Dimmable

: Rp194.000
PT. Oscar Tunastama Indonesia was established in 2004. We specialize in general trade electrical, system design, consulting and installation services, lighting OSRAM especially indoor and outdoor.
We provide Osram lamp, led, industrial, retail and street lights PJU.
