Sell kaishan 34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining from Indonesia by PT. Kaitain Machinery Indonesia,Cheap Price

kaishan 34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining

  • Minimum Order 1 CALL
  • Country Origin China
  • CategoriesDrill Bit
  • Last Updated03 Oct 2019

Product Specification kaishan 34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining



34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Miningck bit

Acedrills offers various cutting structures design configurations, include chisel bits, cross bits and button bits, for an extensive and diverse selection. These designs can be used in a variety of rock formations for maximum productivity, high penetration rate and long service life.



34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining

 Bits Type

  Chisel Bits

  Cross Bits

  Button Bits

Bits Diameter

34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining

         26~43mm

         28~51mm

          28~45mm

34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining







Tapper Degree

       7º,11ºand 12º



 the drill bit, bit set, rock bit

PRODUCT SPECIFICATION



  Chisel Bits

Cross Bits

Button Bits

Taper Degree

7º, 11º and 12º

7º, 11º and 12º

Bits Socket Diameter

mm

23

23

22

inch

27 / 32

27/32

7 / 8

Bit Diameter

mm

26 ~ 43

28 ~ 51

28 ~ 45

inch

1 1/32 ~ 1 45 / 64

1 7/64 ~ 2

1 7/64 ~ 1 25 / 32

Remark

There are horseshoe and oblique chipways designs;

To drill media hard, hard and crack not grown formation with rock hardness not above f15 and in place where the compacting power of the rock drill doesn’t exceed 8Kg/MPa

To drill hard, very hard and crack grown formation

There are short skirt, average long skirt and enhanced long skirt;

with hemi-spherical or parabolic inserts configurations;

to drill all rock formations except very hard and abrasive formations

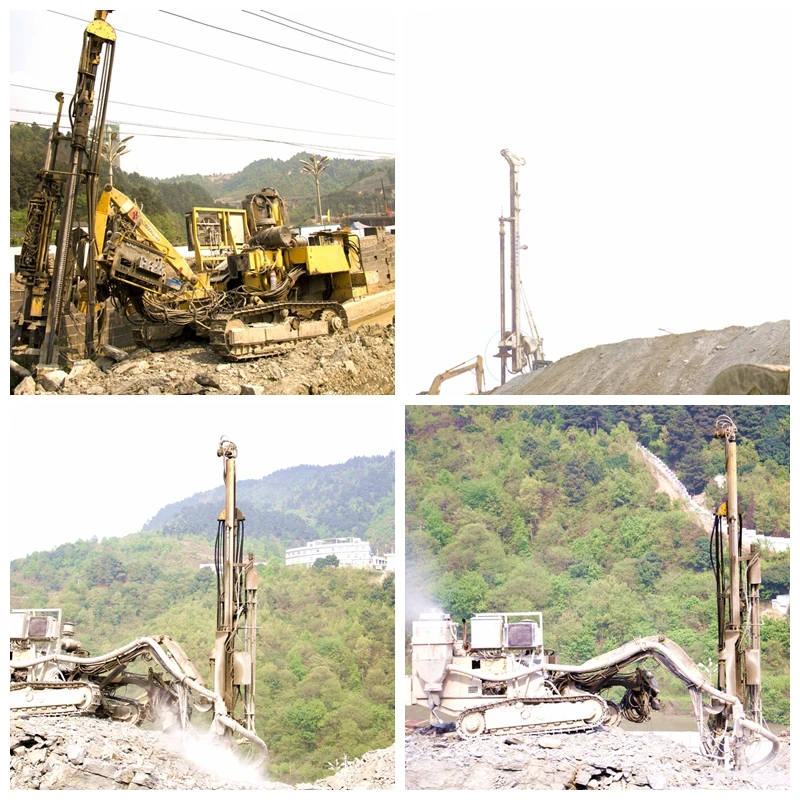

 APPLICATION

34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining



34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining



Notes:

1. Special sizes may be available upon request;



2. Choose big and high carbide bits, when work with high impact rock drills, to improve anti-percussive capability of the inserts;


3. Work with soft formation, use extreme hard carbide inserts bits to get high penetration; while work with hard formation, use sub-hard carbide inserts bits to avoid inserts breaking; work with erosive formation, use anti-resistance alloy carbide inserts;


4. The taper degree of the bits must be the same as the taper rods that it is planned to work with.





Price kaishan 34 mm High Manganese Steel Rock Drilling Tools Hex Shank Hammer Drill Bit Taper Chisel Rock Drill Bits For Mining

: CALL
Kaitain Machinery Indonesia | Kerry Compressor is a company originating from China, a subsidiary of Kaishan Group. We are engaged in the sale of drilling machines and geothermal machines such as Drilling Rig, Screw Air Compressor, Compressors, Jack Hammers, Pressure Tanks & Spare Parts. The development of industry and business in Indonesia is currently very good so the demand for business support products and the industry is also increasing rapidly. We are committed to providing high quality products at economical prices.
