Indicator Light

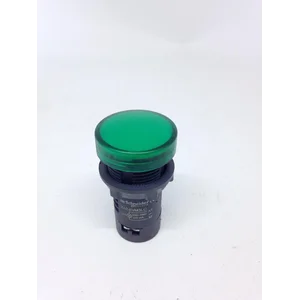

What are indicator lights or pilot lamps

For those of you who have already assembled an electric panel, certainly familiar with the term pilot lamp in the electrical panel. Well, the pilot lamp is an indicator light that indicates that an electric current is entering if the light is on. This pilot lamp works when there is a mains voltage.

The indicator lights that you can choose from are quite varied, but LED type indicator lights are highly recommended because they have brighter and energy-efficient light. There are several types of LED indicator lights available including:

• 24 V AC / DC
• 100-120 V AC
• 230-240 V AC

Phase R, S, T indicators in the distribution panel

• R uses the red LED light
• S uses a Yellow LED light
• T uses the Green LED light

Meanwhile, the indicator on the control button

• Run means that it runs in Green
• Stop means stop using Red
• Alarm or fault uses Yellow
